Περιγραφή
Cube Reaction Hybrid
Σκελετός
- Σκελετός Aluminium Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost148, Fully Integrated Battery, Advanced Internal Cable Routing, 1.5 Headtube, Kickstand/Fender/Carrier Mounting Points
- size Classic: Size Split: 27.5: S // 29: M, L, XL, XXL
Ανάρτηση

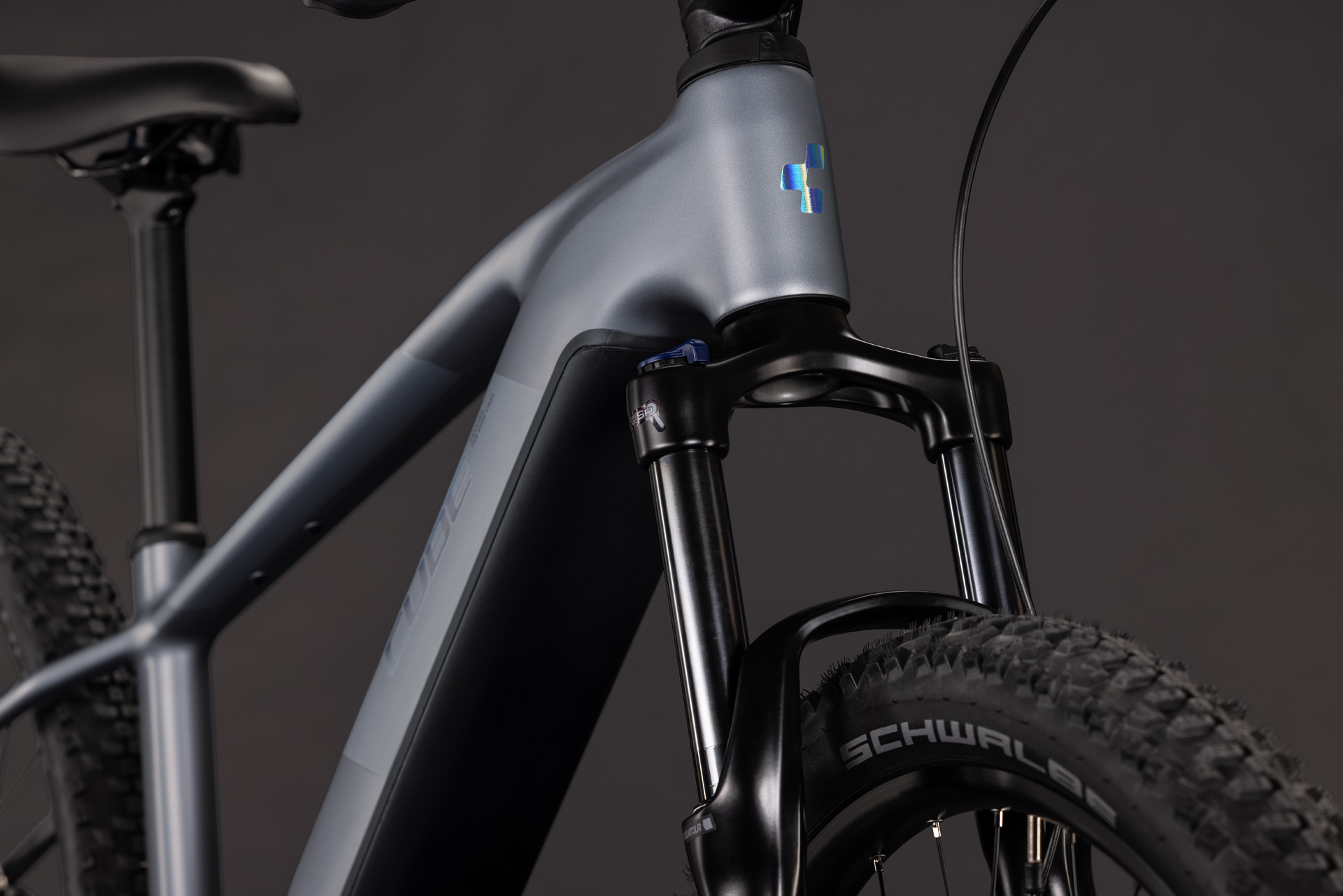

- Suspension fork SR Suntour X34 NLO Coil, Tapered, 15x110mm, 120mm (27.5: SR Suntour X32 NLO Coil, Tapered, 15x110mm, 100mm)
E-bike system
- drive unit Bosch Drive Unit Performance Line 75Nm (BDU34)
- Remote Bosch Purion 200 with Integrated Display
- battery Bosch PowerTube 720
- charger Bosch 2A
Σύστημα μετάδοσης & φρένα

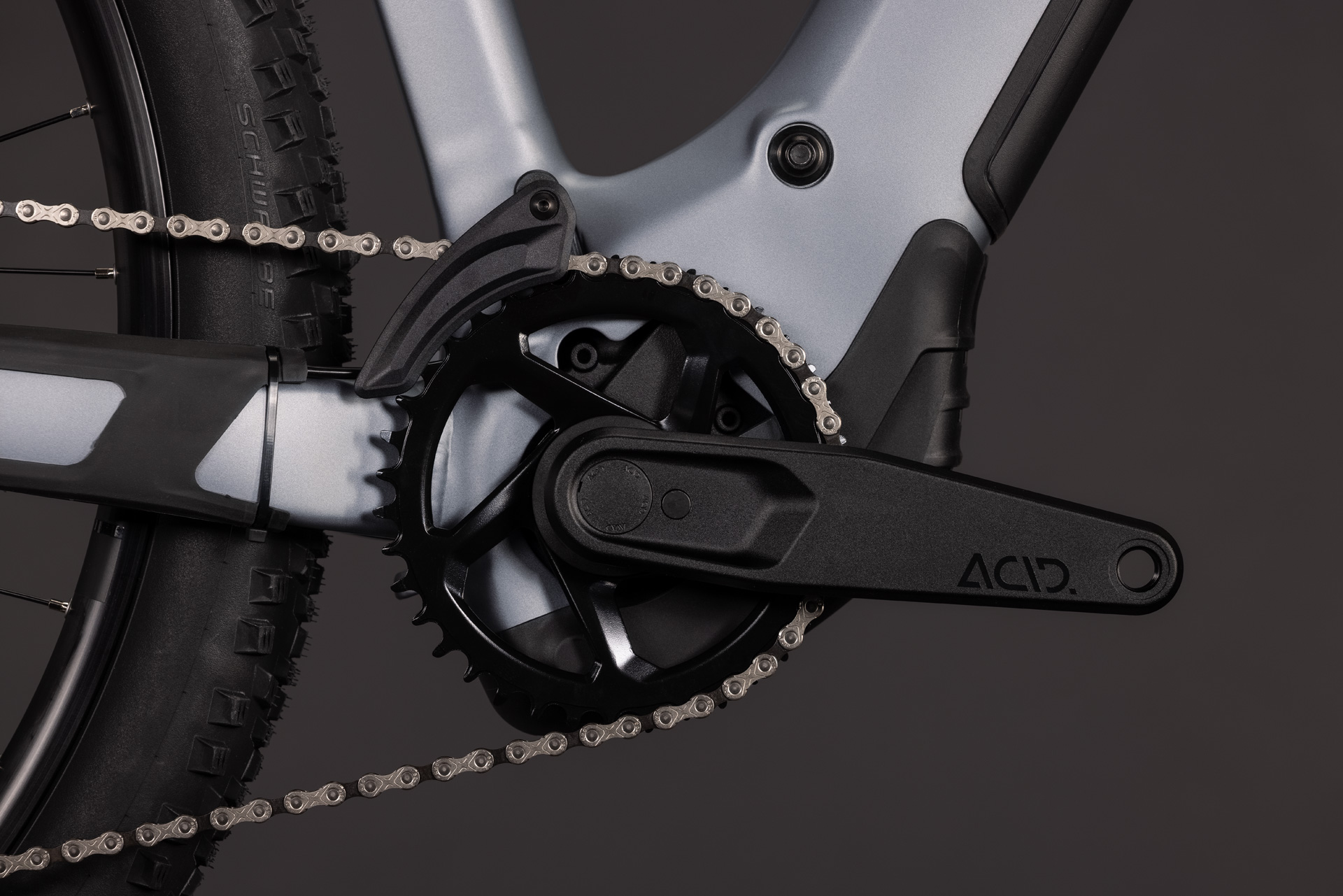

- Δισκοβραχίονας ACID MTB Hybrid Pro, 38T
- Φρένα Shimano BR-MT200, Υδραυλικά δισκόφρενα (180/180)
- rear derailleur Shimano Deore RD-M6200-SGS, ShadowPlus, 12-Speed
- Χειριστήρια Shimano Deore SL-M6210, Single Click
- Κασέτα Shimano Deore CS-M6100, 10-51T
- Αλυσίδα KMC e12
- chain guide Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Cockpit
- headset Acros AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2″ (ZS 56mm), Bottom Zero-Stack 1 1/2″ (ZS 56mm), X-Connect Interface
- Stem CUBE Performance Stem E-MTB 35, FPI-Link
- Τιμόνι CUBE Rise Trail Bar 35
- Χειρολαβές ACID Hybrid Perform
Τροχοί
- wheelset ACID SLX 30, 32/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Ελαστικά Schwalbe Smart Sam, Active, 2.6
Finishing kit
- Σέλα ACID Sequence 160 Pro Bubble Foam
- Παλουκόσελα CUBE Performance Post, 31.6mm
- Πηδάλια ACID PP MTB
Product information
- Structural Weight 150 kg
- Μέγιστο βάρος αναβάτη 120 kg
- colour ashgrey´n´prism Men
- weight 25,1 kg
Γεωμετρία
| Slack/Moderate | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Seat tube | 370 | 405 | 450 | 495 | 545 |
| Top Tube Horizontal | 587 | 607 | 627 | 647 | 667 |
| Seat angle | 74.5° | 74° | 74° | 74° | 74° |
| Head tube angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| Chainstays | 456 | 470 | 470 | 470 | 470 |
| Head tube | 159 | 110 | 120 | 130 | 145 |
| Wheelbase | 1157 | 1176 | 1198 | 1218 | 1240 |
| BB-Height to Hub | 46 | 65 | 65 | 65 | 65 |
| Protrusion height – 80mm | 755 | 778 | 782 | 787 | 824 |
| Reach | 409 | 420 | 437 | 455 | 471 |
| Stack | 646 | 653 | 662 | 674 | 685 |
Εργονομία
| S | M | L | XL | XXL | |
| Length seat post | 361 | 361 | 425 | 425 | 425 |
| Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 |
| Angle stem | 12° | 12° | 12° | 12° | 12° |
| Crank length | 165 | 175 | 175 | 175 | 175 |
| Diameter tire maximum | 722 | 760 | 760 | 760 | 760 |
| Width tire maximum | 66 | 66 | 66 | 66 | 66 |
| Stem length | 60 | 60 | 60 | 60 | 60 |
| Handlebar width | 740 | 740 | 740 | 740 | 740 |
| Stroke seatpost | 100 | 100 | 130 | 130 | 130 |
