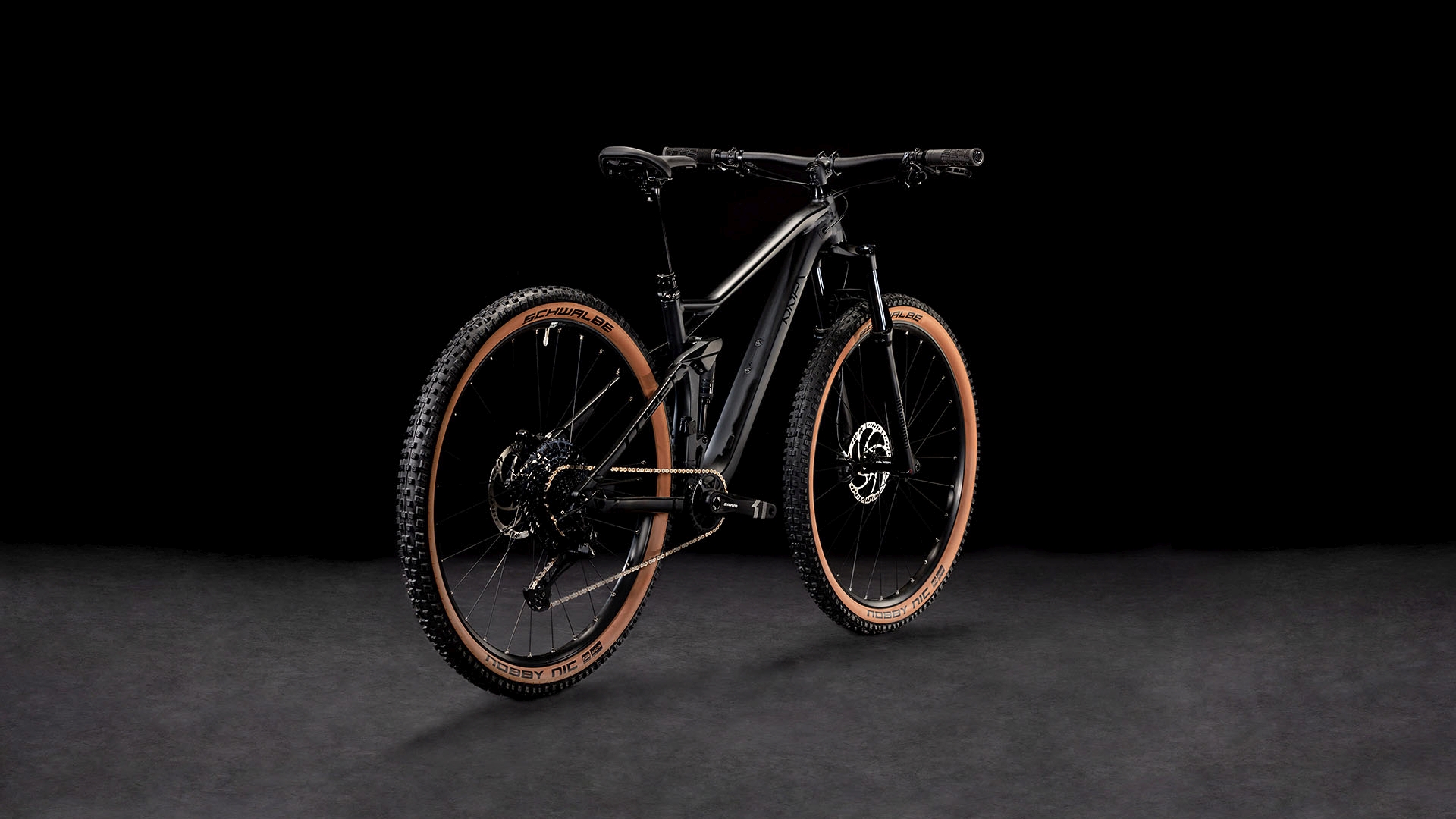

Cube Stereo ONE22 Pro metalblack´n´black – 2026
- Σκελετός HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
- Μεγέθη Size Split: 27.5: XS // 29: S, M, L, XL

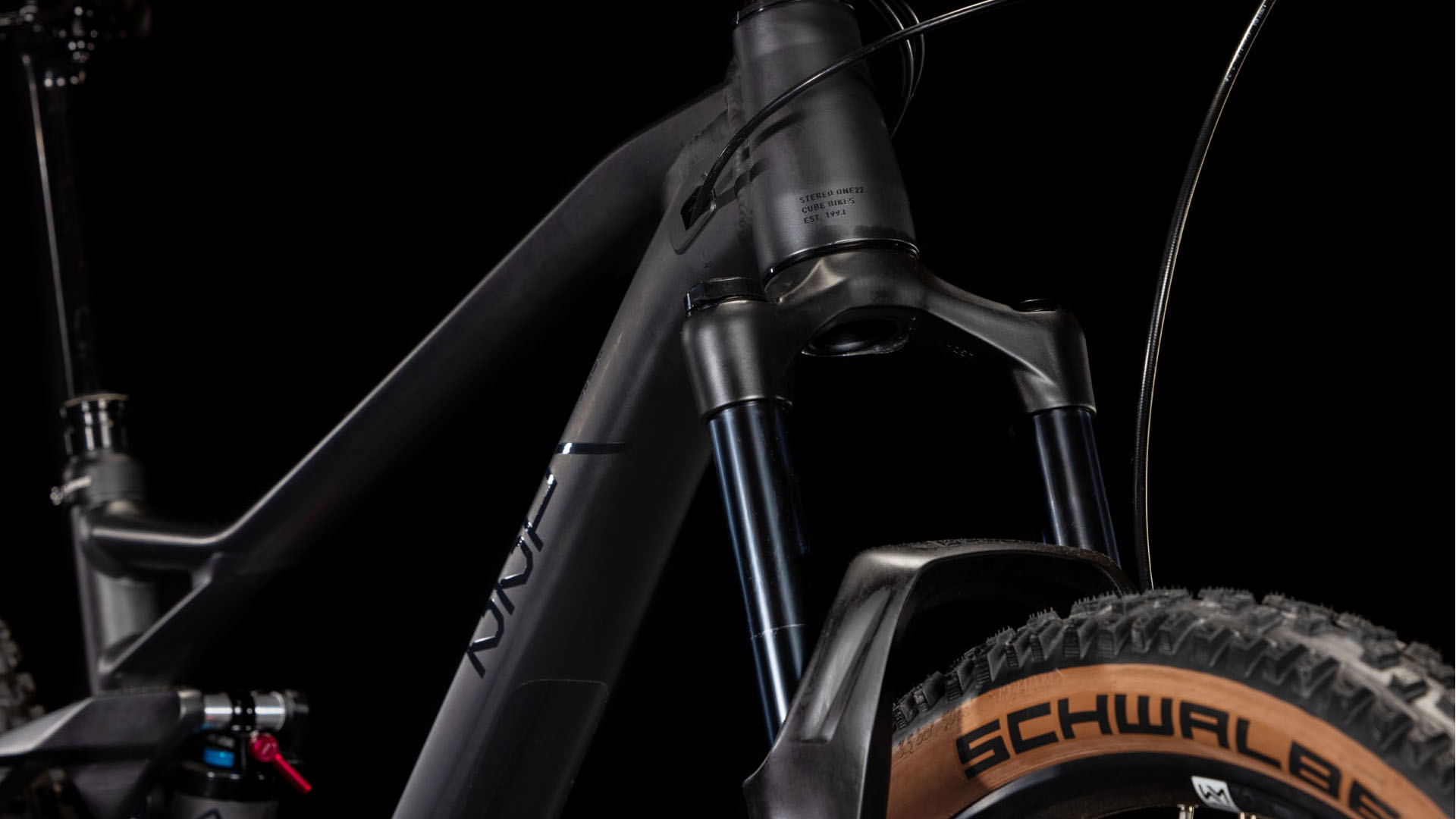

- Ανάρτηση fork RockShox Judy Silver TK Air, Tapered, 15x110mm, 130mm

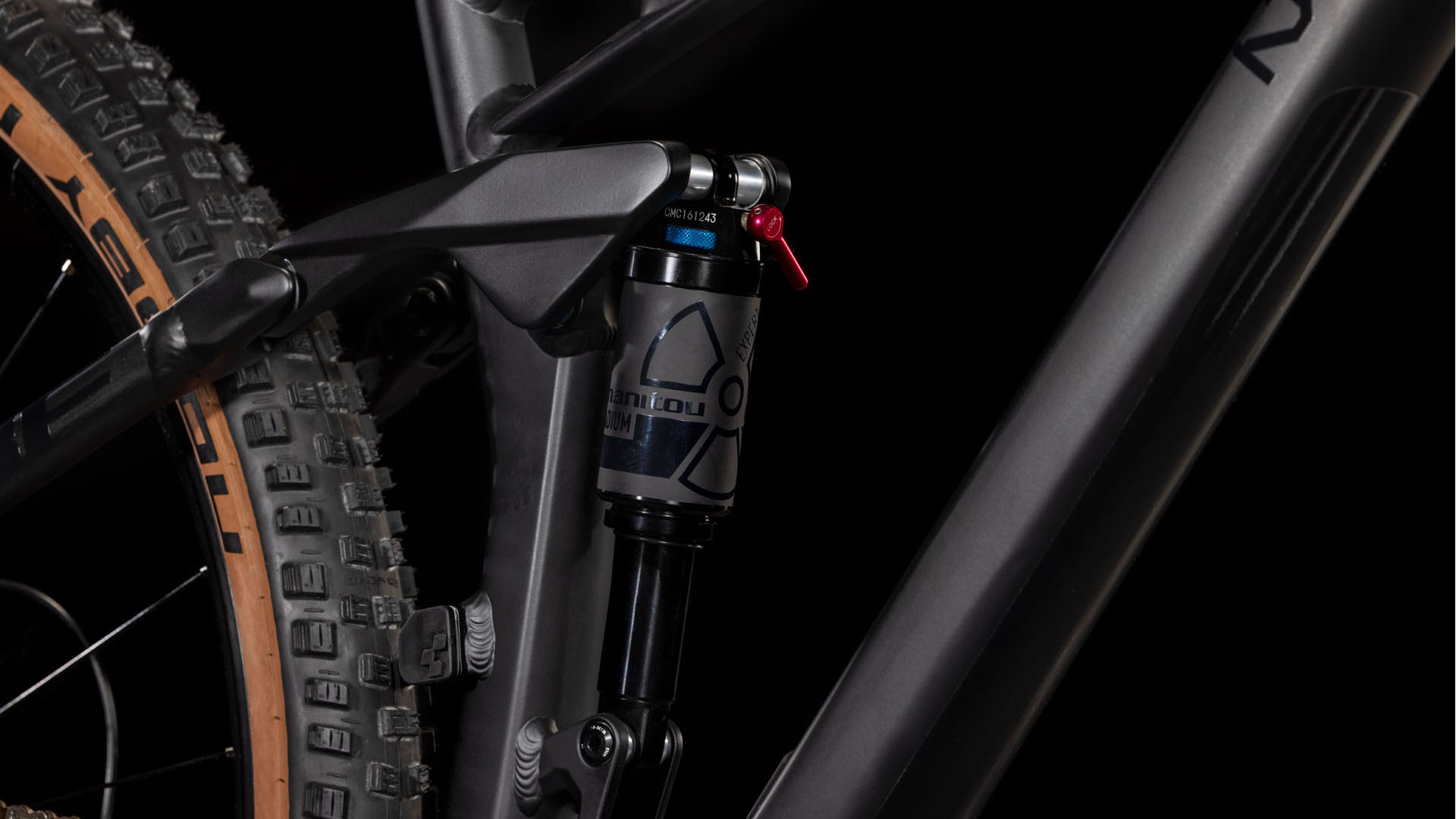

- shock Manitou Radium Expert RL, 190x45mm, Rebound Adjust, Lockout
- shock hardware Top: 40x8mm, Bottom: 22.2x8mm
- Φρένα Magura MT Thirty, Υδραυλ. Δισκόφρενα (180/180)
- Οπίσθιο Ντεραγιέ Sram NX Eagle™, 12-Speed
- Μεσαία τριβή Sram DUB MTB, 92mm Pressfit
- Δισκοβραχίονας Sram X1 1000 Eagle™ DUB 30T, Boost
- Κασέτα Sram PG-1210 Eagle™, 11-50T
- Αλυσίδα Sram SX Eagle™
- headset VP Tapered, Top Zero-Stack 1 1/8″ (OD 44mm), Bottom Zero-Stack 1 1/2″ (OD 56mm)
- Stem Newmen Evolution 318.4, 31.8mm
- Τιμόνι CUBE Rise Trail Bar, 760mm
- Χειρολαβές ACID Disrupt, Soft Compound
- Ζάντες Newmen Performance 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Ελαστικά Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4

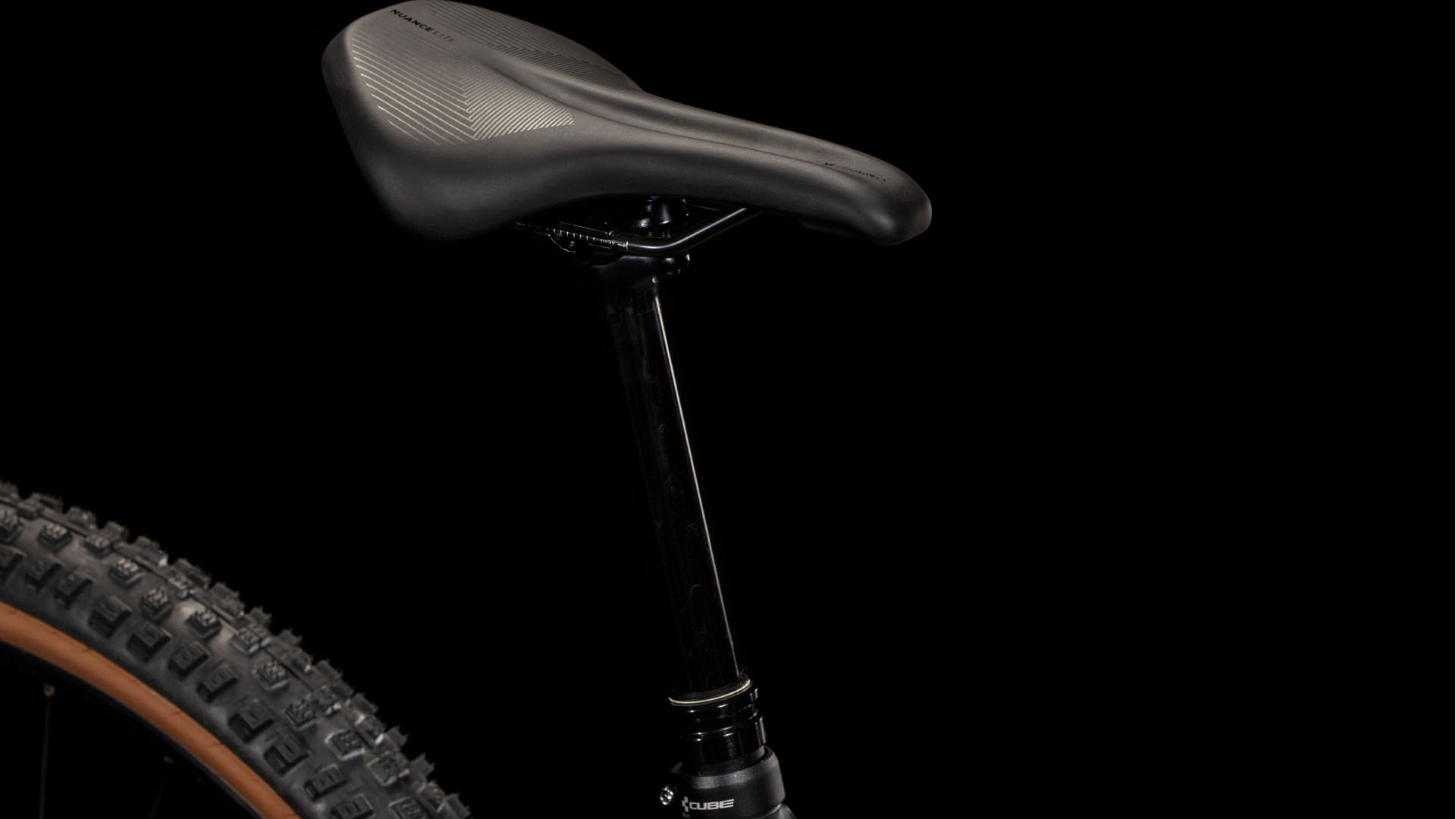

- Σέλα ACID Nuance Lite
- Παλουκόσελο CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- seat clamp CUBE Screwlock, 34.9mm
- Χρώμα metalblack´n´black
- Βάρος 14,9 kg
- Βάρος με αναβάτη 115 kg
Γεωμετρία
| XS | S | M | L | XL | |
| Seat tube | 350 | 370 | 420 | 470 | 520 |
| Top Tube Horizontal | 547 | 570 | 591 | 614 | 640 |
| Seat angle | 75.3° | 75.3° | 75.3° | 75.3° | 75.3° |
| Head tube angle | 67.5° | 67° | 67° | 67° | 67° |
| Chainstays | 417 | 436 | 436 | 436 | 436 |
| Head tube | 100 | 100 | 103 | 113 | 133 |
| Wheelbase | 1096 | 1145 | 1166 | 1190 | 1218 |
| BB-Height to Hub | 20 | -40 | -40 | -40 | -40 |
| Protrusion height – 80mm | 699 | 696 | 739 | 770 | 810 |
| Reach | 405 | 420 | 440 | 460 | 480 |
| Stack | 567 | 604 | 606 | 615 | 634 |
Εργονομία
| XS | S | M | L | XL | |
| Length seat post | 361 | 403 | 462 | 462 | 510 |
| Diameter seatpost | 31.6 | 31.6 | 31.6 | 31.6 | 31.6 |
| Angle stem | 6° | 6° | 6° | 6° | 6° |
| Crank length | 170 | 170 | 170 | 175 | 175 |
| Diameter tire maximum | 718 | 758 | 758 | 758 | 758 |
| Width tire maximum | 64 | 64 | 64 | 64 | 64 |
| Stem length | 40 | 50 | 50 | 60 | 70 |
| Handlebar width | 760 | 760 | 760 | 760 | 760 |
| Stroke seatpost | 100 | 120 | 150 | 150 | 170 |
| Rear suspension travel | 120 | 120 | 120 | 120 | 120 |
